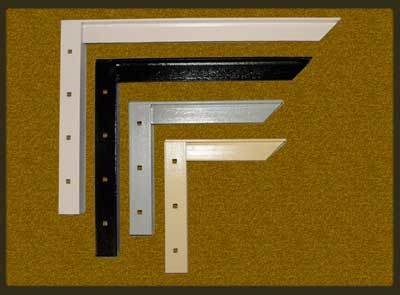

Concealed Brackets

Heavy duty 1/4" steel concealed shelf brackets can be used for floating shelves, work stations or heavy duty shop shelving. Designed to be attached directly to the wall stud with the included 3/8" - 18 x 3" carriage bolts. The vertical mounting arm of the bracket is completely concealed behind the drywall, and the horizontal arms exceed 1,800 lbs. - 7,960 lbs. per pair depending on arm length.

Features
Available with 9”, 12”, 18” and 24” support arms
Available with upper extension (EC) and without upper extension (C)
Upper extension (above the support arm) provides superior strength
Load limit range of 1,800 lbs. to 7,960 lbs. per pair
Mounting hardwareincluded (3/8”-16 X 3” bolt assemblies)
All welds on reverse for easy, clean install
Available in black, white, gray and almond powdercoat
Packaged 2 pcs per box

wokrstation bracket-conecealed with extensions

Concealed Brackets

Size

Price per pair

Qty/Color

C-9"

$61.90

C-12"

75.30

C-18"

90.60

C-24"

98.30

Upper Extension Concealed Brackets

EC-9"

77.10

EC-12"

81.70

EC-18"

97.30

EC-24"

105.50
