Standard Paint Finishes

Color

Code

Solar Black

SB

 Grey Value 1

G1

Tan Value 1

T1

Warm Brown 1

WB

Warm White

WW

Wood Rose

WR

Series 1 Base Cover Colors

Color

Code

Dark Tone

DT

 Medium Tone

MT

Series 2 Base Cover Colors

Color

Code

Dark Tone

DT

 Medium Tone

MT

Inner tone Light

HF

This kit provides a panel with non-powered wire management raceway at the panel base.  It includes 2 raceway covers and 1 base plate with dual power block risers.

See Series 1 colors on Chart

This kit converts a panel without raceway to one with powered wire management raceway.  Dual Power Block supplies up to four duplex receptacles per panel with three 20-amp circuits; it is UL/CUL recognized under UL 1296 for power distribution and UL 498 for receptacles.  It includes 2 raceway covers, 1 base plate, 1 dual power block and 4 attaching screws.  Shipped unassembled.  Note:  Panel-to-panel fillers, Duplex Receptacles, Receptacle Covers, Receptacle Windows and Festoons must be ordered separately.  OEM Compatible.

See Series 1 colors on Chart

Snap into receptacle outlet holes on side covers (Series1).  Compatible with  HMP350.00 must be used with receptacle.  HMP351.00 is used to cover receptacle hole when not in use.

See Series 1 colors on Chart

Wire management base plate used with A01 or OEM electrical distribution 6-wire/3circuit power.  Note:  Raceway covers, Panel-to panel fillers and Outlet cover clips and/0r power must be ordered separately.

See Series 1 colors on Chart

Wire management cover pairs that can be used on OEM metal base plate; HMP330 (with receptacle openings) will work with OEM 6 -wire/3-circuit power.  Note:  Panel -to-panel fillers,  Base and receptacle Cover Clips must be ordered separately.  Cover Clips (HMP351.00) are required to cover unused electrical outlet holes.

Supplies up to four duplex receptacles per panel with three 20-amp circuits; it is Ul/CUL recognized under UL 1286 fir power distribution and UL 498 for receptacles.  It is totally compatible with OEM 6-wire/3-circuit power.  Note:  Use attaching screws, #10 x 2" type "A" self tapping screw with slotted hex head, to affix dual power blocks to Series 1 Raceway Base plate.  4 required.

Connects one electrical kit directly, or through a connector, to an adjoining electrical kit or panel pass-through cable.  Festoons are UL/CUL recognizes under UL 1286 for power distribution.  OEM compatible.

Continues power supply from one clerical kit through non-powered panel(s) to another electrical kit or panel pass-through cable.  It is UL/CUL recognized under UL 1286 for power distribution.  It can be fully interchanged with OEM 6 wire/3-circuit power.  OEM compatible.  Note: Order to match width of panel that electrical must pass through.

Locks into the base of a powered panel to deliver one of three circuits.  It is UL/CUL recognized under UL 498 for receptacles.  They are compatible with OEM 6-wire/3-circuit power.  Note:  Order individually.  Order Receptacle Cover Clips (HMP350.00) separately.

Available in Black Only.

Kit provides wire management covers at base of connectors and end caps. Also replacement parts for raceway kits. 2-way, 3-way,2-way 180° and End Cap kits include pins. OEM compatible.

See Series 1 colors on Chart

Use to add wire management and electrical capability to panels.  Kit includes one (1) raceway frame, two (2) levelers, and two (2) race ways covers.  HM520 Kits include slide mount (s).  Top channel drilled for power and OEM Version 1 & 2 power.

See Series 2 colors on Chart.

Use to replace raceway covers or HM OEM raceway covers.  Note: Sold in pairs.  For OEM type with cutouts call Customer Service for lead time.

See Series 2 colors on Chart.

Heavy duty one-piece frame provides electrical/communication raceway for AO2 panels.  AO2 glides (HMP574-01 DT) are included.  Please contact Customer Service for 5" raceway parts for all structural steel frames

Use to add wire management raceway to base of connectors and panel end caps.  OEM compatible.

See Series 2 colors on Chart.

Use to electrifyAO1 &AO2 wire management raceway.  System 4 is an 8-wire/4-circuit assembly with 2 power blocks which accommodate up to 4 receptacles.  Note:  System 4 electrical system is UL recognized (UL Standard 1286) and CSA certified (CSA standard C22.2 No. 203).

Used to continue power run through a non-powered wire management raceway from a powered base assembly.

Use for straight line applications ONLY when running power from one panel through a 3 or 4 way connector into another panel (example:  Powering a spine at a 3 or 4 way condition)

Use to bring building power source to panel electrical distribution assemblies.

Transition jumper Connector brings power from HM Series 2 4-circuit 8-wire electrical system to 4-circuit 8-wire electrical system.  HMP559.1500 for panel-to panel transition and HMP559.1800 for panel-connector-panel transition. (for OEM Ao2 Version 1 only)

Slide into face power block.  Select circuit a, b, or c for general purpose use.  Use circuit d for isolated  dedicated circuit.

Available in Black Only.

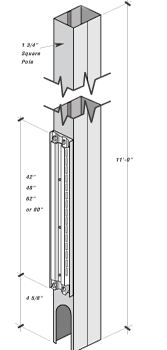

This ceiling entry pole assembly connects to the end of a panel run or at 3-or 4-way 90 degree connector.  It conceals voice/data communication cables from the ceiling entry point to the base of the panel.  Ceiling Cover Plate is 6" x 6" metal 2-piece with cutout for power pole.  Mount to ceiling tile to finish off top condition.  Plate is unpainted.

Standard Paint Finishes
