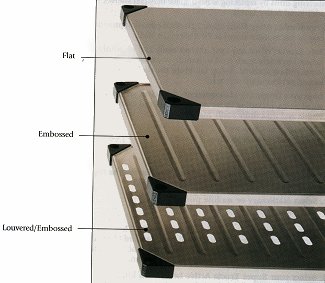

Super Erecta Solid Shelving A rigid shelf. Shelf design features a raised edge on all four sides. Sturdy aluminum castings firmly lock corners to posts. Louvered/Embossed shelf style allows air circulation. Available in stainless steel or galvanized.
Super Erecta Unit with Flat Solid Shelves
SiteSelect Posts are grooved at 1" (25mm) increments and numbered at 2" (50mm) increments. Posts are Double-grooved every 8" (203mm) for easy identification.
code 65 Site Select Posts for Super Erecta Solid Shelving Stationary Posts are fitted with and adjustable leveling bolts to compensate for uneven surfaces. Mobile posts come without leveling bolt to accommodate stem casters.. Special length posts are available
HEIGHT
Chrome Stationary Qty Chrome Qty Price Stainless Qty Stainless Qty Price in mm 14 1/2 370 13P 9.10 13PS $18.85 27 1/2 699 27P 27UP 11.05 27PS 27UPS 26.35 34 1/2 875 33P 33UP 11.70 33PS 33UPS 29.90 54 9/16 1385 54P 54UP 13.65 54PS 54UPS 32.85 62 9/16 1590 63P 63UP 14.65 63PS 63UPS 37.05 74 5/8 1895 74P 74UP 16.00 74PS 74UPS 41.60 86 5/8 2200 86P 86UP 19.85 86PS 86UPS 47.80 96 5/8 2454 ***96P
22.75
*Height includes leveling bolt and cap .
code 65
Flat
Width/Length
Cat. No. Galvanized Price Each
Qty
Cat No. Stainless Price Each Qty
(in.) (mm) 14 x 24 355 x 610 1424FG $ 50.70 1424FS $ 122.85 14 x 30 355 x 760 1430FG 54.30 1430FS 125.80 14 x 36 355 x 914 1436FG 54.30 1436FS 125.80 14 x 42 355 x 1066 1442FG 60.15 1442FS 153.10 14 x 48 355 x 1219 1448FG 60.15 1448FS 153.10 14 x 60 355 x 1524 1460FG 65.35 1460FS 182.65 18 x 24 457 x 610 1824FG 54.30 1824FS 139.75 18 x 30 457 x 760 1830FG 58.20 1830FS 142.70 18 x 36 457 x 914 1836FG 58.20 1836FS 142.70 18 x 42 457 x 1066 1842FG 65.35 1842FS 174.55 18 x 48 457 x 1219 1848FG 65.35 1848FS 174.55 18 x 60 457 x 1524 1860FG 74.10 1860FS 212.90 21 x 24 530 x 610 2124FG 59.50 2124FS 159.25 21 x 30 530 x 760 2130FG 62.40 2130FS 162.20 21 x 36 530 x 914 2136FG 62.40 2136FS 162.20 21 x 42 530 x 1066 2142FG 72.80 2142FS 197.95 21 x 48 530 x 1219 2148FG 72.80 2148FS 197.95 21 x 60 530 x 1524 2160FG 83.20 2160FS 247.65 24 x 24 610 x 610 2424FG 65.35 2424FS 171.30 24 x 30 610 x 760 2430FG 69.25 2430FS 174.85 24 x 36 610 x 6914 2436FG 69.25 2436FS 174.85 24 x 42 610 x 1066 2442FG 78.65 2442FS 210.60 24 x 48 610 x 1219 2448FG 78.65 2448FS 210.60 24 x 60 610 x 1524 2460FG 88.40 2460FS 256.75
code 65
Louvered Embossed
Width/Length
Cat. No. Galvanized Price Each Qty
Cat No. Stainless Price Each Qty
(in.) (mm) 14 x 24 355 x 610 1424LG $ 57.20 1424LS $ 129.35 14 x 30 355 x 760 1430LG 57.20 1430LS 129.35 14 x 36 355 x 914 1436LG 60.80 1436LS 132.30 14 x 42 355 x 1066 1442LG 66.65 1442LS 159.60 14 x 48 355 x 1219 1448LG 66.65 1448LS 159.60 14 x 60 355 x 1524 1460LG 71.85 1460LS 189.15 18 x 24 457 x 610 1824LG 60.80 1824LS 146.25 18 x 30 457 x 760 1830LG 64.70 1830LS 149.20 18 x 36 457 x 914 1836LG 64.70 1836LS 149.20 18 x 42 457 x 1066 1842LG 71.85 1842LS 181.05 18 x 48 457 x 1219 1848LG 71.85 1848LS 181.05 18 x 60 457 x 1524 1860LG 80.60 1860LS 219.40 21 x 24 530 x 610 2124LG 66.00 2124LS 165.75 21 x 30 530 x 760 2130LG 68.90 2130LS 165.70 21 x 36 530 x 914 2136LG 68.90 2136LS 168.70 21 x 42 530 x 1066 2142LG 79.30 2142LS 204.45 21 x 48 530 x 1219 2148LG 79.30 2148LS 204.45 21 x 60 530 x 1524 2160LG 89.70 2160LS 254.15 24 x 24 610 x 610 2424LG 71.85 2424LS 177.80 24 x 30 610 x 760 2430LG 75.75 2430LS 181.35 24 x 36 610 x 6914 2436LG 75.75 2436LS 181.35 24 x 42 610 x 1066 2442LG 85.15 2442LS 217.10 24 x 48 610 x 1219 2448LG 85.15 2448LS 217.10 24 x 60 610 x 1524 2460LG 94.90 2460LS 263.25
Note: With 14" (355mm) shelving, foot plates must be used on free standing units; on mobile units, maximum post height is 54" (1370mm).
