LAR Shelving Metro All-Stainless Solid Shelving
Site # M408

Super Erecta Shelf®  All-Stainless Steel
  • Solid shelving is available in four widths
  • All-stainless,18 gauge steel construction with 1/8" (3mm) ship's edge detail helps contain spills.
  • All-stainless design, including stainless cast corners, can be used in cart wash and autoclave environments.
  • New accessories include high-temperature autoclave casters and autoclave cart covers.


New-All-stainless solid shelf is designed specifically for cart-wash applications.
See Autoclave Guidelines below

Solid Shelves
WidthLengthPart
inmminmmStainlessPrice EaQty
14355246101424NFS$ 141.40
14355307601430NFS145.30
14355369141436NFS145.30
143554210661442NFS175.85
143554812191448NFS175.85
143556015241460NFS210.30
18457246101824NFS160.90
18457307601830NFS164.45
18457369141836NFS164.45
184574210661842NFS200.55
184574812191848NFS200.55
184576015241860NFS244.75
21530246102124NFS183.00
21530307602130NFS186.55
21530369142136NFS186.55
215304210662142NFS227.85
215304812192148NFS227.85
215306015242160NFS284.70
24610246102424NFS196.95
24610307602430NFS201.50
24610369142436NFS201.50
246104210662442NFS242.45
246104812192448NFS242.45
246106015242460NFS

295.75

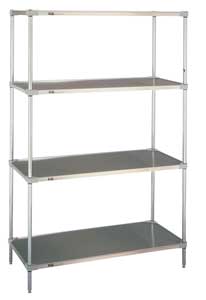

(shown 1848NFS)


Stainless Steel Shelf Ledges
Sturdy 4" (101)mm ledges contain items on shelves. Spring-clip tabs included for attachment.
Fits Shelf LengthPart
inmmStainlessPrice EaQty
14355L14WS$24.40
18457L18WS25.35
21530L21WS28.60
24610L24WS31.55
30760L30WS37.40
36914L36WS44.85
421066L42WS47.80
481219L48WS55.25
601524L60WS63.40


4" (101) mm Ledges

Stainless Steel Shelf Dividers
The easy way to keep shelves orderly. Eight inch (203) high dividers attach with spring clips (provided)
Fits Shelf LengthPart
inmmStainlessPrice eaQty
18457DD18FS$39.35
24610DD24FS47.15


Shelf Dividers


For Stationary Applications
Combine required shelf sizes above with stainless posts. Stainless Posts are fitted with adjustable leveling bolts to compensate for uneven surfaces.
HeightPart #
inmmStainlessPrice Qty
14-1/237013PS18.85
27-1/270027PS26.35
34-1/287533PS29.90
54-9/16138554PS32.85
62-9/16159063PS37.05
74-5/8189574PS41.60
88-5/8220086PS47.80

For Mobile Applications
Combine required shelf sizes above with stainless mobile posts. Mobile posts accept a wide range of Metro Stem Casters.
27-1/269927UPS26.35
33-7/886133UPS29.90
54137054UPS32.85
62157563UPS37.05
74188074UPS41.60
86218586UPS47.80

For Cart Wash (Mobile) Applications
Combine required shelf sizes above with stainless swedged posts. Stainless steel cart washable casters are required for cart wash applications. See below
3387533UPS-SW$30.55
54137054UPS-SW 33.80
63160063UPS-SW 38.35

SiteSelect™ Posts are grooved at 1" (25mm) increments and numbered at 2"(50mm) increments. Posts are double grooved every 8" (203mm) for easy identification.

Stainless Steel Cart-Washable Stem Casters
Stem casters are shipped with donut bumpers.
Wheel
Dia.		FaceLoad
Rating
inmminmmlbs.kg.TypeWheel TreadPart #Price Qty
51271-1/43215068SwivelHigh Modulus5MDGSA88.80
51271-1/43215068BrakeHigh Modulus Donut5MDBGSA93.30
51271-1/43215068RigidHigh Modulus Donut5MDRGSA93.30
51271-1/432300135SwivelPolyurethane5MPGSA93.95
51271-1/432300135BrakePolyurethane5MPBGSA97.85
51271-1/432300135RigidPolyurethane5MPRGSA97.85

Note: Load height for all MD and 5MP casters-6-3/32
All casters are grease sealed with zerk fittings in swivel axle
Brakes are foot operated


5MDGSA

For Autoclave (Mobile) Applications
Combine required shelf sizes with stainless swedge posts(4). Aluminum split sleeves must be used for autoclave applications. High temperature stem casters must be selected from below.

Aluminum Split Sleeves
Improved deign is easier to install. For High Temperature, over the road, or conductive applications. Stainless steel rings included. One bag required per shelf, 4 pairs per bag.
9986SAluminum Split Sleeves$ 12.50
Qty:


9986S

High-Temperature Autoclave Stem Casters

5MHTP
5MHTPB
5MHTN
5MHTNB
TypeWheel TreadLoad RatingPart #Price Qty
SwivelHi-Temp Phenolic3005MHTP$121.90
BrakeHi-Temp Phenolic3005MHTPB  129.70
SwivelHi-Temp Nylon3005MHTN  121.90
BrakeHi-Temp Nylon3005MHTNB  129.70
Note: Casters are temperature rated for up to 300° F (149°C)

Autoclave Application Guidelines

When stainless solid shelving, as part of a mobile shelving unit, is used in an autoclave, the following Metro product guidelines are recommended to ensure optimal product performance and longevity:

Stainless, swedged posts with aluminum post caps must be utilized [part numbers 33/54/63UPS-SW]

Aluminum split sleeves [part number 9986S] with stainless rings should be used to mount solid stainless shelves.

Select either hi-temp phenolic casters or hi-temp nylon casters for application. These casters are designed specifically for autoclave environments. Bumpers should not be used as they are not designed to withstand autoclave temperature ranges.


LAR Carts click here
