 | | Assembled in North America!
Top Activation
Top Taper is 17-4- The most popular taper 50mm & 45mm Column- Matches bases with 50mm or 45mm Hub Taper Most Columns are Black in Color- Some available in Chrome |
Types of Tapers- Check your current Gas Cylinder for the following Tapers |
| Straight
(No) Taper |
| Shouldered
(17-26) Taper |
| Gentle
(17-4) Taper |
|
Length of Travel- Check your current Gas Lift for the amount of Travel
|
 Fully Extended
How many inches of difference?
Fully Compressed
Diameter of largest portion of Gas Lift
1.5" = 40mm
1.75"= 45mm
2" = 50mm |
|
Column (Cover Can) Dimension- Check your measurement! |
Gas Lifts
|
|
3.2" 50mm Gas Cylinder
 | - 80mm of travel (3.2") -office chair height
- Top Taper is 17-4 - The most popular taper
- 50mm column w/ Y Dimension of 26mm
- Fully extended height 309.5mm (12.2")
- Fully compressed height 231mm (9.1")
- Black
- Assembled in North America
Model: S3384
$ 28.36 |
| | |
5.5 " 50mm Gas Cylinder
 | - 140mm of travel (5.5") -office chair height
- Top Taper is 17-4 - The most popular taper
- 50mm column w/ Y Dimension of 26mm
- Fully extended height 419.5mm (16.5")
- Fully compressed height 281mm (11.1")
- Black
- Assembled in North America
Model: S3693
$ 28.54 |
| | |
5.5" 50mm Gas Cylinder
 | - 140mm of travel (5.5")
- Top Taper is 17-4 - The most popular taper
- 50mm column w/ Y Dimension of 42mm
- Chrome
- Assembled in North America
Model: C19-62005
$ 92.00
|
| | |
8" 50mm Gas Cylinder
 | - 199mm of travel (8")-stool height
- Top Taper is 17-4 - The most popular taper
- 50mm column w/ Y Dimension of 5mm
- Fully extended height 573mm (22.55")
- Fully compressed height 374.5mm (14.75")
- Black
- Assembled in North America
Model: - 019-60412
$ 36.02 |
| | |
10" 50mm Gas Cylinder
| - 267 mm of travel (10")
- Top Taper is 17-4 - The most popular taper
- 50mm column w/ Y Dimension of 5mm
- Fully extended height 704mm (27.7")
- Fully compressed 438 mm (17.25")
- Black
- Assembled in North America
Model: C19-62010
$ 39.36 |
| | |
8" 50mm Gas Cylinder
| 200mm of travel (8") Top Taper is 17-4 - The most popular taper 50mm column w/ Y Dimension of 5mm Chrome Assembled in North America
Model: C19-62004 $ 56.00 |
| | |
| | Gas Lift
Suspa
Equa Replacement
Tube=220mm
Stroke=125mm 300N Model: S2681
$ 49.95 |
*please note that gas cylinders and springs are non-returnable and non-refundable |
Manual Lift |
Spin Lift -office chair height Model# S3999
$38.95 each |
|
|

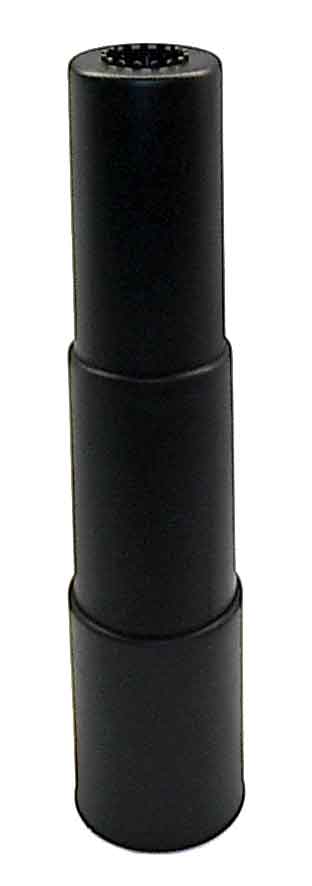

Lift Cover Can |
| Three Piece Extension Black High Impact Plastic Will accommodate most lifts from 3.2" of travel to 5.5" of travel Model S1777.......$2.50 each |
|
Lift Cover Bellows |
|
Black Corrugated Plastic
31 Pleat- Approximately 12" Will accommodate most lifts from 3.2" of travel to 5.5" of travel Model S1778.......$3.95 each |
|
